- Size: 13
- Place of Origin: Shandong jinan
- Brand Name: CNC Chang
- Model Number: CN-1325
- Weight: 1200.000 kg
Ji nanchang nuo CNC equipment co. LTD.
Quote price letter

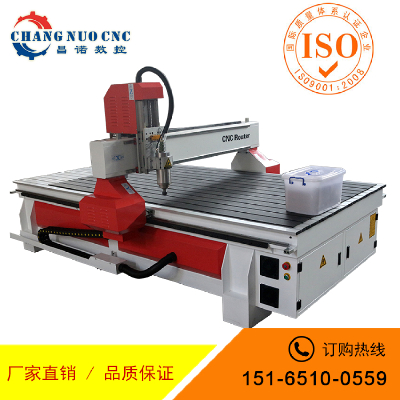

1. Project overview: four independent woodworking engraving machine for furniture industry, decoration industry, musical instrument industry, handicraft industry. Furniture, home decoration, carpentry decoration, door industry, wood crafts and other industries processing and sculpture modeling.
Ii. The parameters are as follows:
Processing trips XYZ 1800*1300*150 1800*2500*150 1800*2500*200.
Main shaft power 4.5KW 5.5KW 6KW.
Spindle speed 24000rpm/min 24000rpm/min 24000rpm/min.
Processing speed: 8-10m/min 10-12m/min 10-12m/min.
Positioning accuracy 0.02-0.04mm 0.02-0.04mm 0.02-0.04mm.
Processing precision: 0.1%-0.2mm 0.1-0.2mm 0.1-0.2mm.
Drive motor Japan yaskawa servo Japan yaskawa servo.
Operation guide rail Taiwan upper silver guide rail Taiwan upper silver guide rail.
Transmission method new moon 1.5m helical tooth rack crescent 1.5m helical tooth rack crescent 1.5m helical tooth rack.
Control system shan long S1000 panel handwheel control system shan long S1000 panel handwheel control system mountain dragon S1000 panel handwheel control system.
Bed surface vacuum adsorption mesa vacuum adsorption mesa.
The parts are equipped with dedusting equipment, a set of tools, a teaching CD and a wrench.
The price of the equipment is rmb60,000 RMB 62,000 RMB 6.5mm.
Iii. Project requirements:
1. Chinese enterprises must ensure the quality of their products and provide after-sales service.
2. Require the Chinese enterprises to be responsible for the supply of equipment, technical guidance for installation and commissioning, and personnel training (the installation charge is another).
3. The above can be done, and we can consider long-term cooperation.
Iv. Payment method: 50% of the shipment before the contract is signed, 50% of the goods will be settled.
Person in charge: song weixi.
Telephone: 15165100559 fax: 0531-87582630.
Zip code: 250000.
Address: room 2205, building no. 1, lok meng mansion, shixi road, huaiyin district, jinan city.
- Size: 13
- Place of Origin: Shandong jinan
- Brand Name: CNC Chang
- Model Number: CN-1325
- Weight: 1200.000 kg
The parameters are as follows:
Processing trips XYZ 1800*1300*150 1800*2500*150 1800*2500*200.
Main shaft power 4.5KW 5.5KW 6KW.
Spindle speed 24000rpm/min 24000rpm/min 24000rpm/min.
Processing speed: 8-10m/min 10-12m/min 10-12m/min.
Positioning accuracy 0.02-0.04mm 0.02-0.04mm 0.02-0.04mm.
Processing precision: 0.1%-0.2mm 0.1-0.2mm 0.1-0.2mm.
Drive motor Japan yaskawa servo Japan yaskawa servo.
Operation guide rail Taiwan upper silver guide rail Taiwan upper silver guide rail.
Transmission method new moon 1.5m helical tooth rack crescent 1.5m helical tooth rack crescent 1.5m helical tooth rack.
Control system shan long S1000 panel handwheel control system shan long S1000 panel handwheel control system mountain dragon S1000 panel handwheel control system.
Bed surface vacuum adsorption mesa vacuum adsorption mesa.
The parts are equipped with dedusting equipment, a set of tools, a teaching CD and a wrench.
