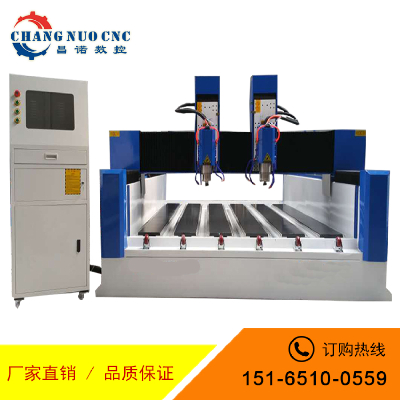

1825 double independent heavy stone carving machine information

Scope of application

CN - 1825 double independent plane three-dimensional heavy stone engraving machine, used natural marble, granite, bluestone, sandstone, artificial stone, wood, acrylic, density board, tombstone, milestone, ceramic tile, floor tile, metal, glass and rigid object material relief and line carve, cutting, down side, drilling, 2 d, 3 d engraving.

Performance advantage

The bed is welded with thick steel tube and treated with high temperature tempering to ensure the fuselage is small, rigid and strong. The Y-axis is driven by twin motors and selected pairs to ensure smooth movement. Adopt high precision gear rack drive, high precision, fast speed and power. Mechanical and electrical design, select various electrical parts, reduce the failure rate to the lowest. All kinds of dust - proof and waterproof design, protect the machine transmission parts from all directions long work: can realize power cut, breakpoint, the next day processing, convenient and labor-saving. The breakpoint memory method can be used to ensure that it can be processed by accident (breaking knife) or by the next day. High speed machining: high kinetic energy, Y-axis twin motor drive, curve, linear speed consistent. A unique way of preserving the origin of multiple artifacts.

The equipment parameters

Model CN-1825 double independent flat solid stone carving machine

X,Y axis working stroke 1800*2500*500 (mm)

The machine is black and red

Feed height 500mm

Run speed 12m/min

Transmission mode Taiwan crescent gear rack drive

Main shaft motor (water cooled spindle)

Actuator rese 880H driver

Motor power 450B step motor

Control system pro - version of the DSP control system

Operation mode DSP four-axis handle control

Axis rotation axis 320mm rotation axis

Working voltage 380v

Inverter is a 5.5kw converter

The surface of the bed is 8mm, with the steel structure t-shaped, the steel beam and the large gantry, the feed height is 500cm

Running guide rail with silver 2.5 straight square guide rail

Run the TBI ball screw in Taiwan

Mesa material square tube aluminum profile 25PVC

Sink stainless steel sheeting stone processing special tank

Equipped with a tool for cutting tools

Core competitiveness

U because we are direct manufacturers, have professional and technical personnel to do after, on the day of receipt of the machine, please ask for the factory technical after-sales phone users actively, to provide you with free installation, training, commissioning and other services, has been to your work, make sure you can independent processing production;

We are offering you a large number of engraving design patterns. From the date of purchase, you will enjoy the free upgrade of software.

From the date of purchase, we can attend all kinds of technical training courses free of charge to our company.

After-sales service: you have difficulty or the product cannot be used normally. We will make a solution within 2 hours after receiving the feedback from the user, and repair within 48 hours.

We provide consumables (contract agreement) for low price, and the products of the warranty period will be replaced by the cost of replacement parts.
